Size(Inches): 2 Inch
ASME Pressure Rating: ANSI 900
Body Material: A105+NACE
Trim Material: SS 316
Seals: PEEK
First Priority: Purchase Order And Variation Hereto
Second Priority: Data Sheets And Drawings
Third Priority: This Specification
Dimensions / Design As Per B 16.10 / BS EN ISO17292 / API 6D.
Floating Ball Up To 2″. Trunnion Ball For Sizes ≥ 2″.
Product Detail
Valve Description:
Design standard: API 6D.
Body material: ASTM A105.
Nominal diameter: 2 Inch.
Pressure: 600 LB.
End connection: RTJ.
Face to face: ASME B16.10.
Working temperature: -29℃~+200℃.
Test and inspection: API 598.
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 lbs~2500 lbs (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.

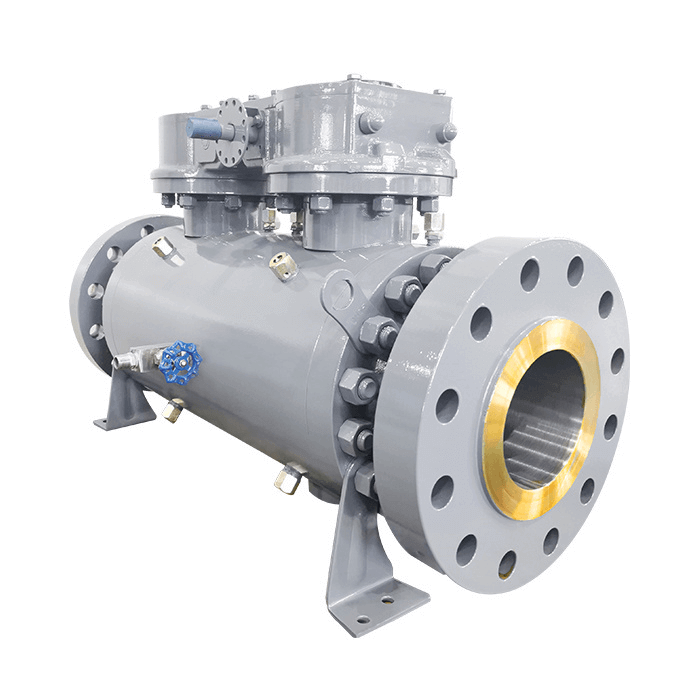

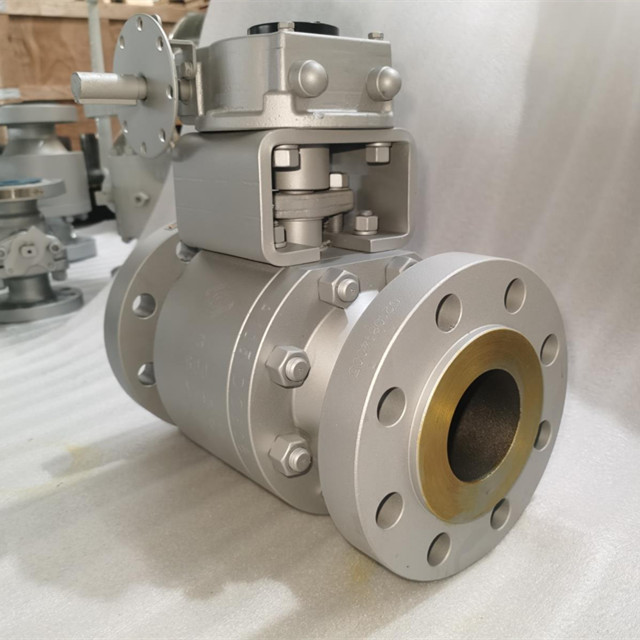

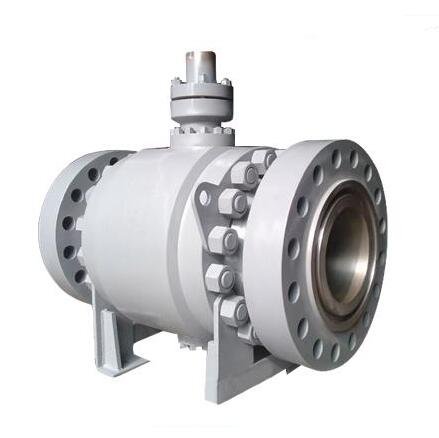

Product keywords of Flange Trunnion Mounted Ball Valve, ASTM A105, 2 Inch, 600 LB
A metal seated ball valve, forged steel A105N body, lever operated.
The metal seated floating ball valve refers to a typical floating type ball valve(usually forged steel) which adopts metal to metal contact between the sealing surfaces of the ball and seat. Proper face-hardening process shall be conducted including ultra-sonic spray coating, nickel-based alloy spray welding, stellite spray overlay, as well as ceramic material coating, etc. In order to meet the “zero leakage” sealing requirement, the ball shall be carefully ground to extremely accurate roundness and smoothness by rotating the ball and grinding apparatus in different directions.
Metal seated floating ball valves of Metals Valve are designed to API 6D, API 608, ISO 17292. End connection: RF/RTJ according to ASME B16.5, BW according to ASME B16.25, SW & NPT according to ASME B1.20.1. Valve shall be furnished with blowout proof stem, anti-static device and API 607 fire safe design. Especially,
(1) Top mounting pad design as per ISO 5211. Optional worm gear, electric actuator and pneumatic actuator are available.
(2) Hard faced ball and seat to satisfy the requirement of high hardness, high temperature resistance, and wear resistance.
(3) Under the stress of preloaded spring, a tight sealing is secured even in low operating pressure.
(4) Self-cleaning dust proof seat design is available.
